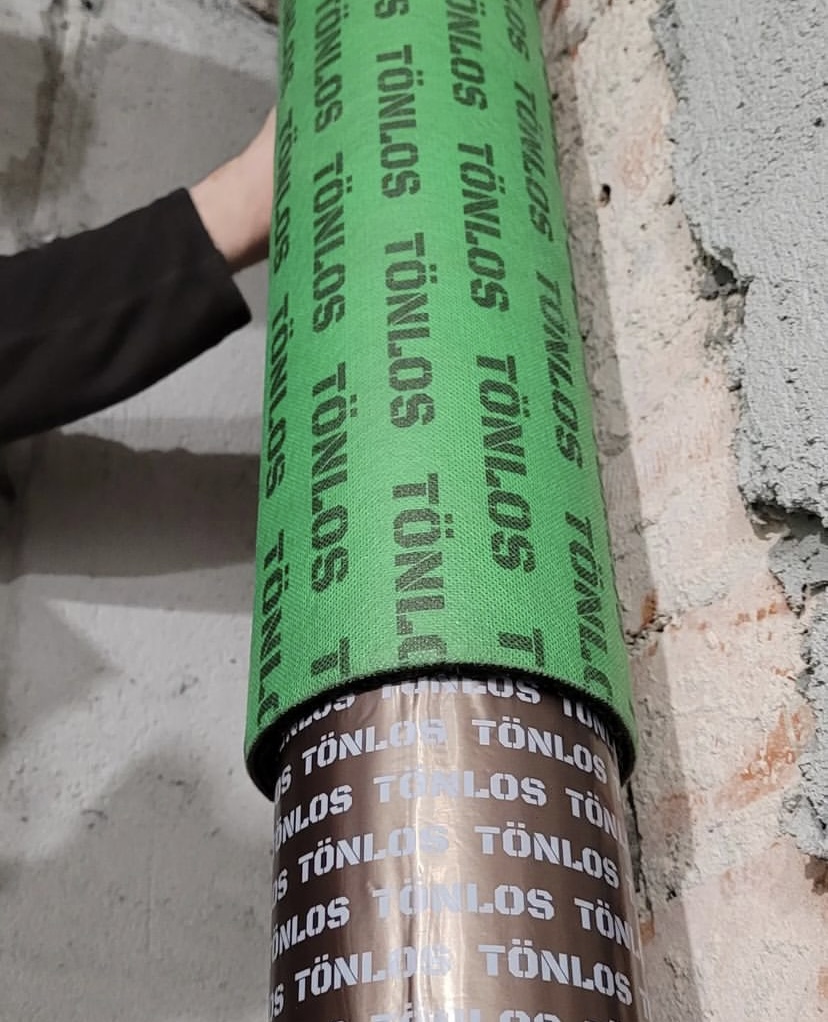

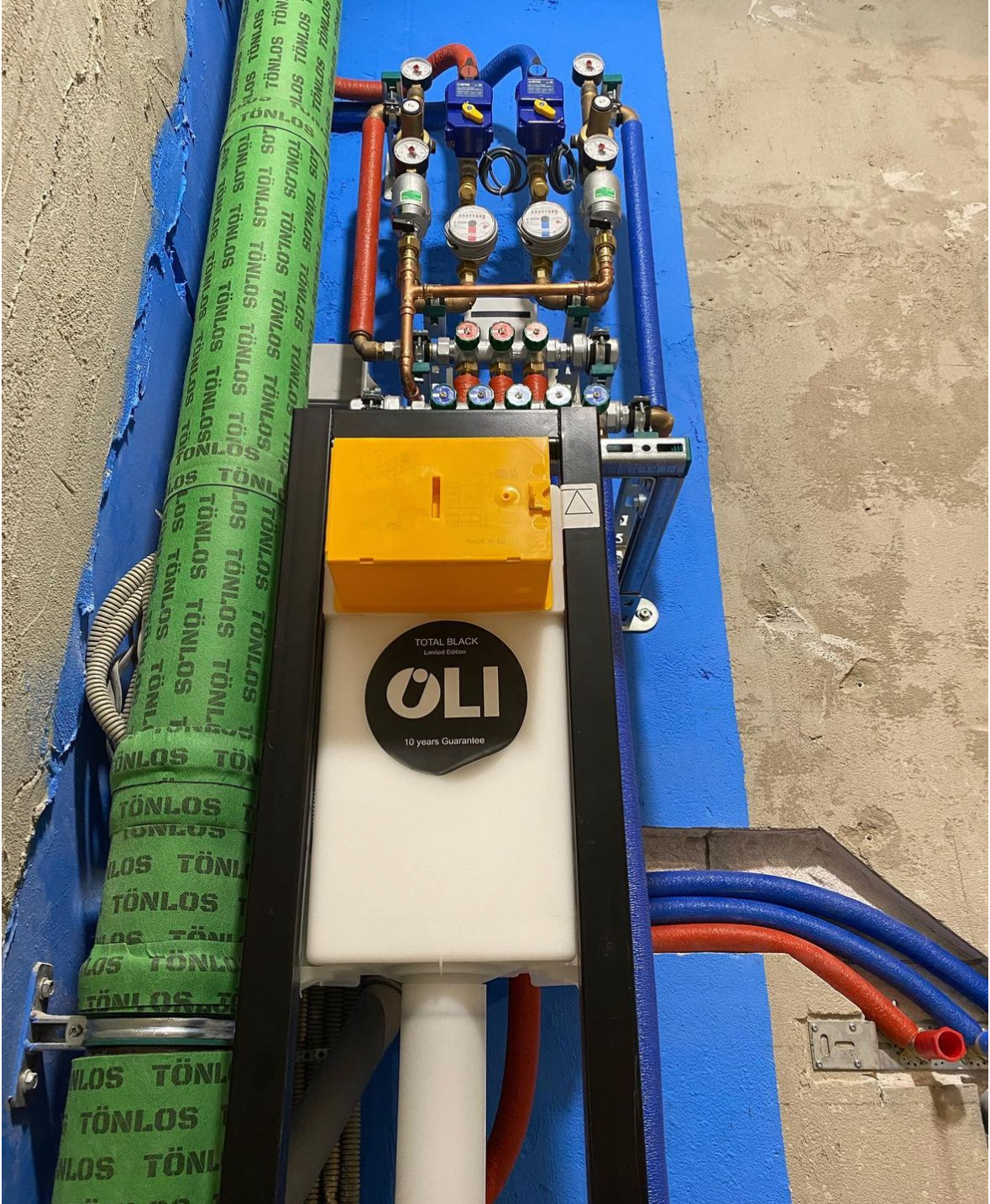

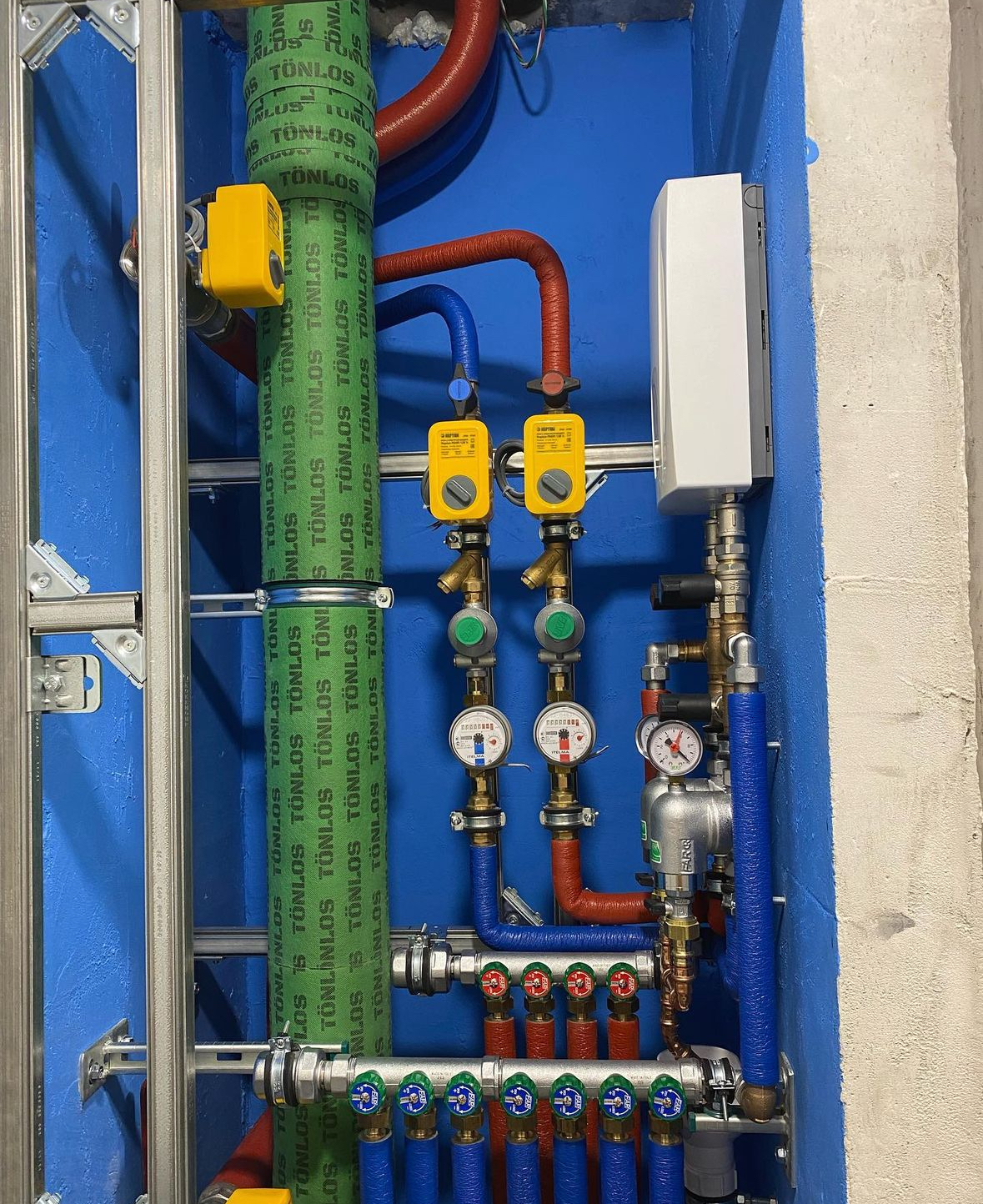

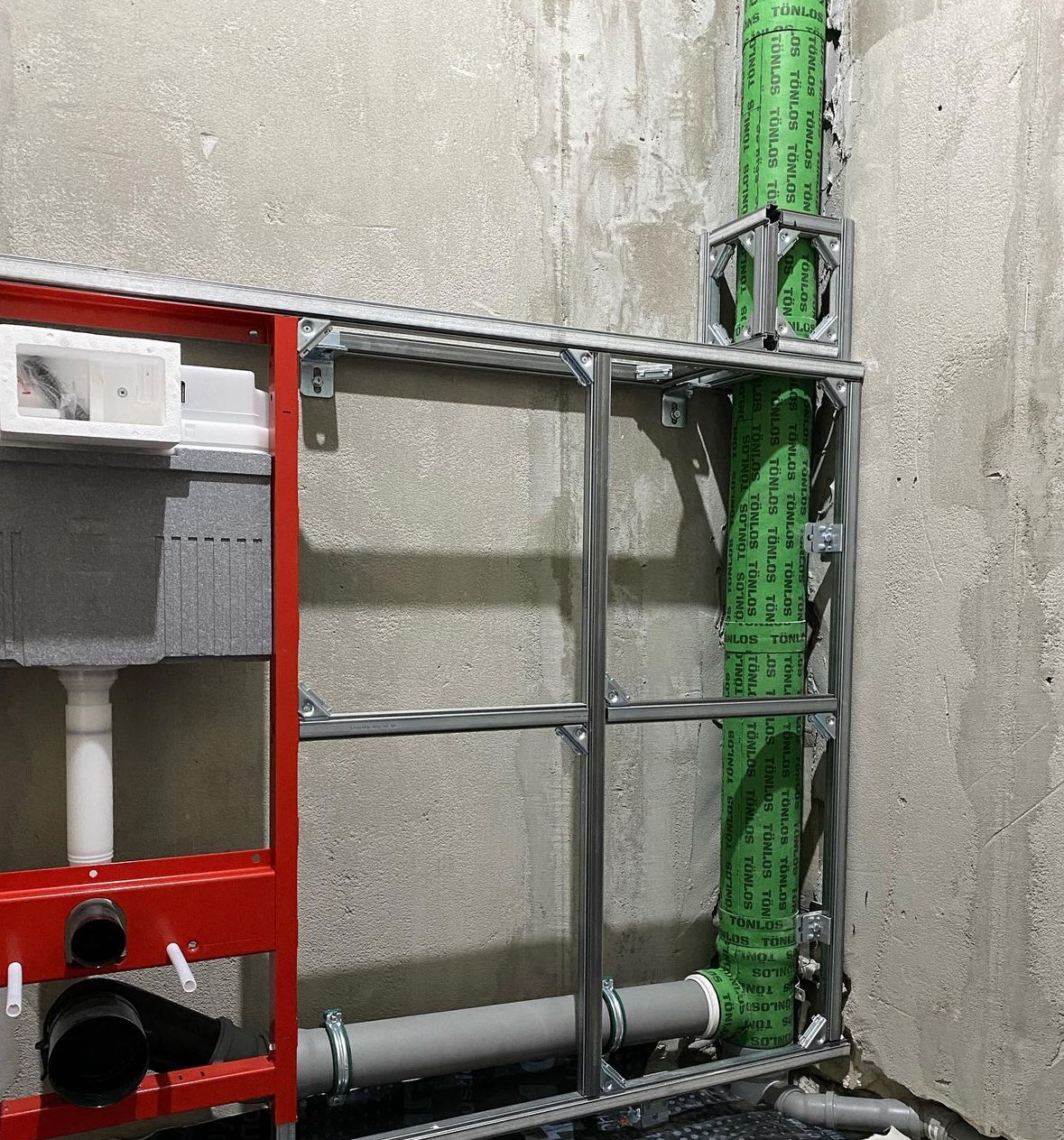

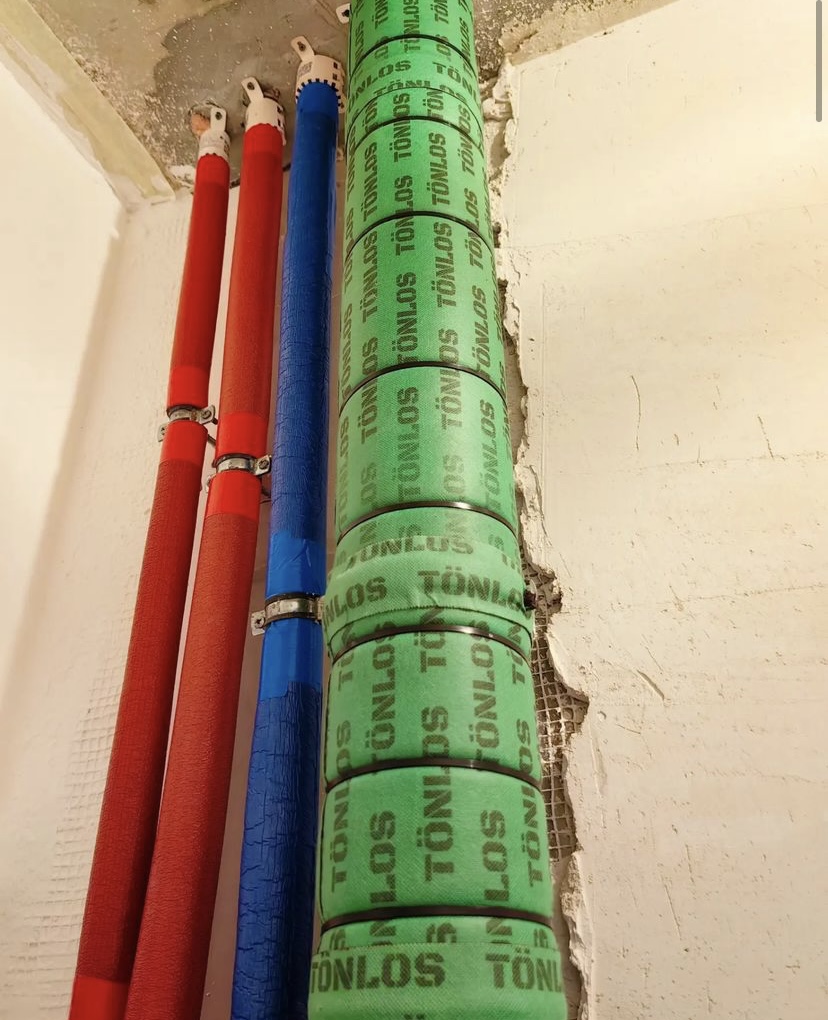

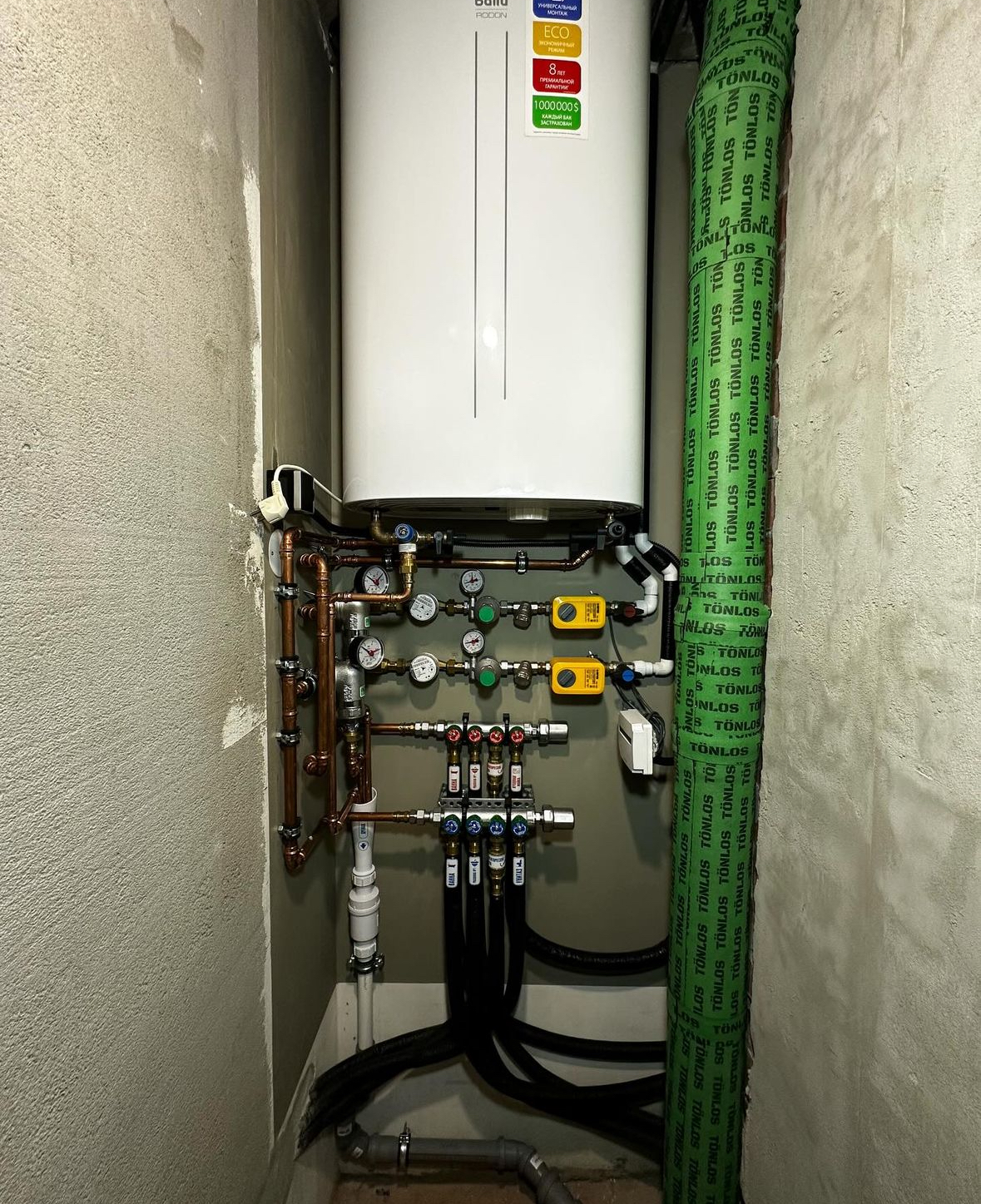

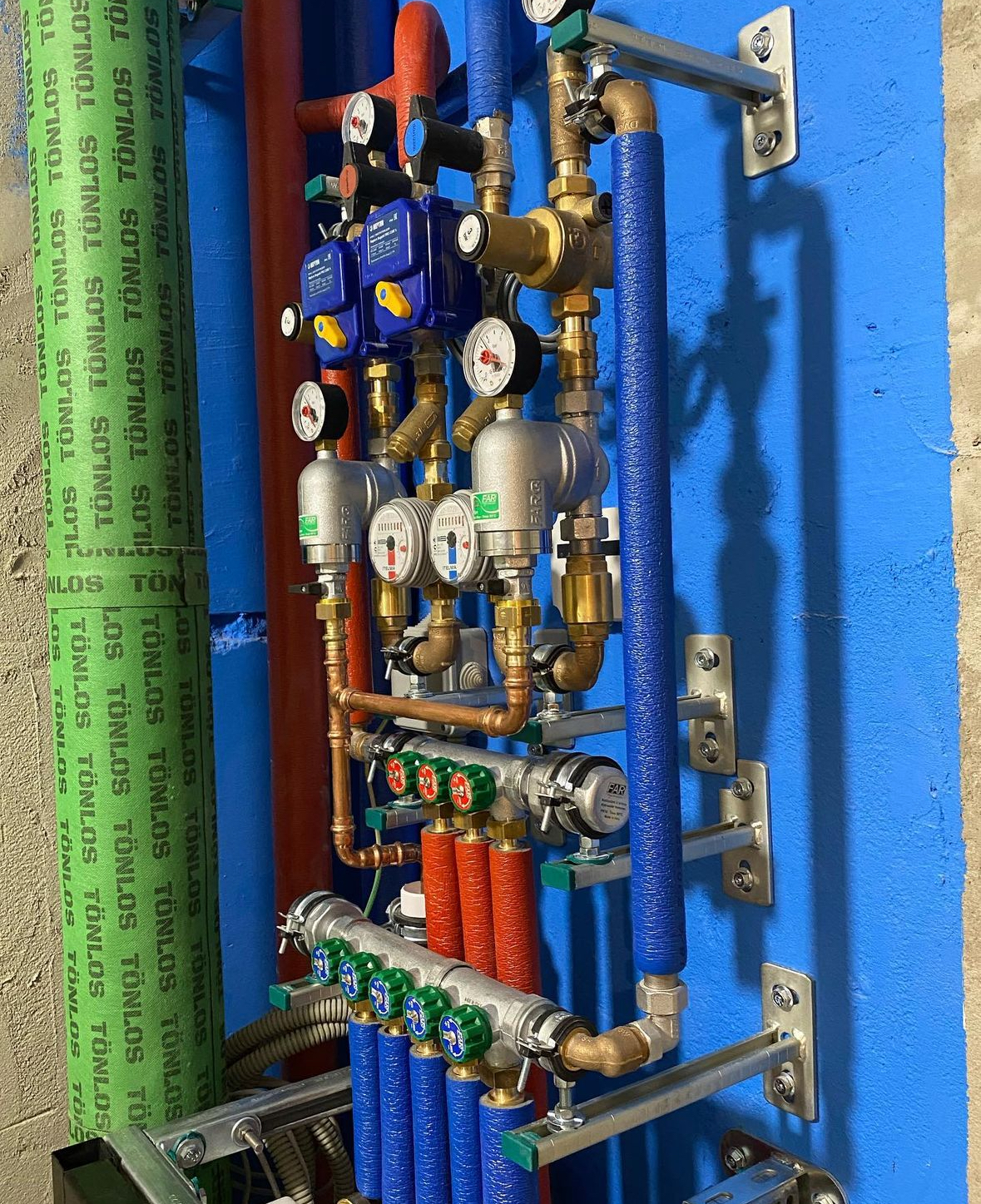

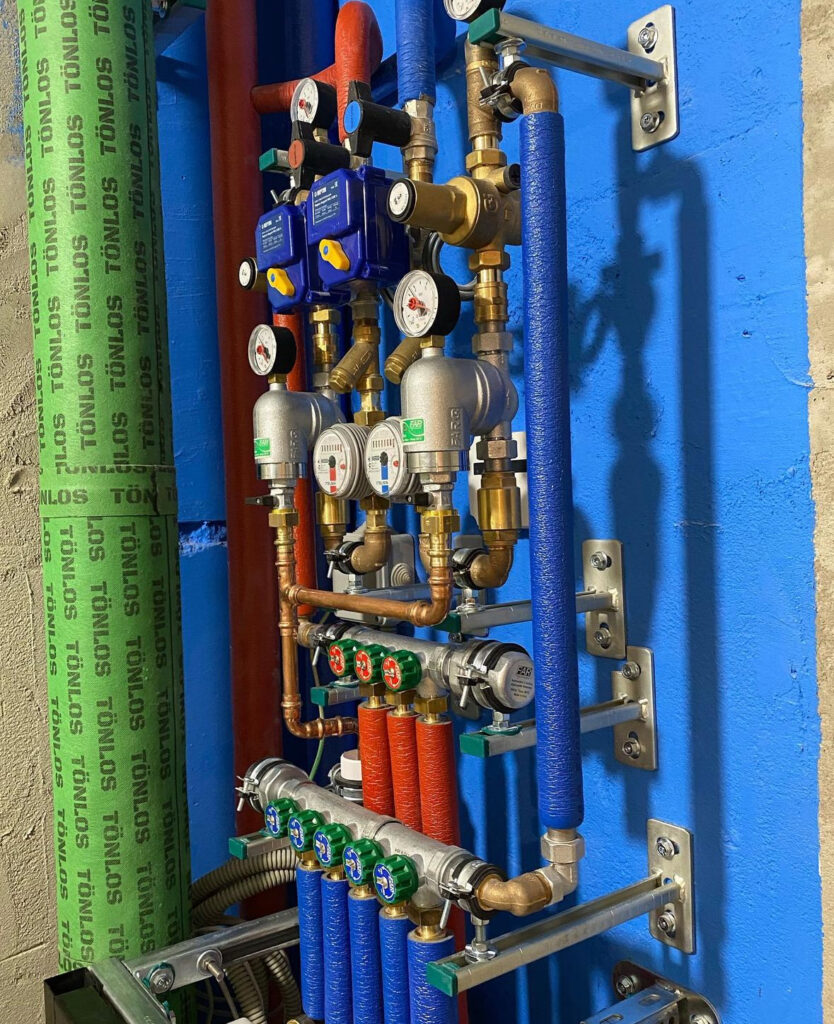

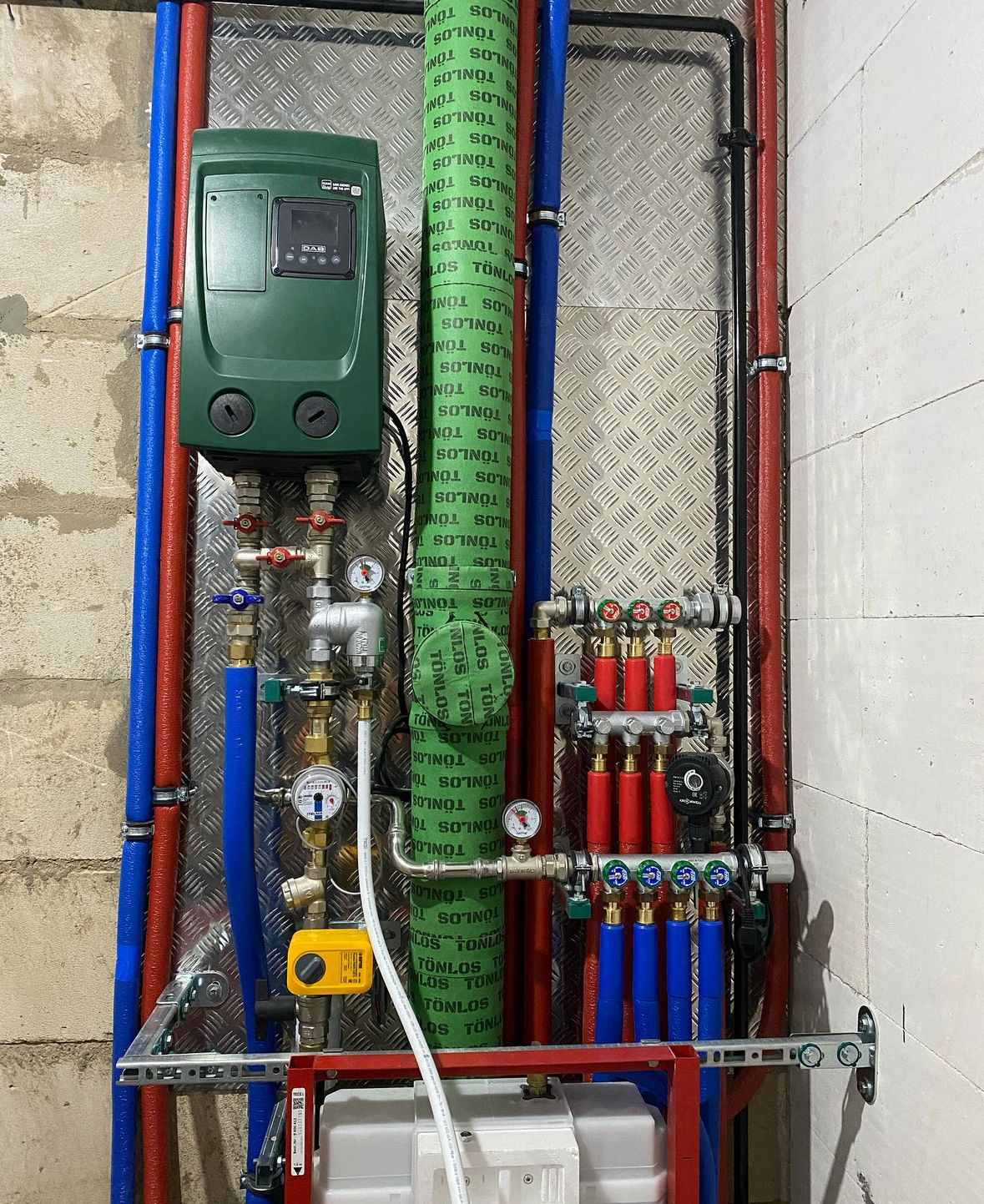

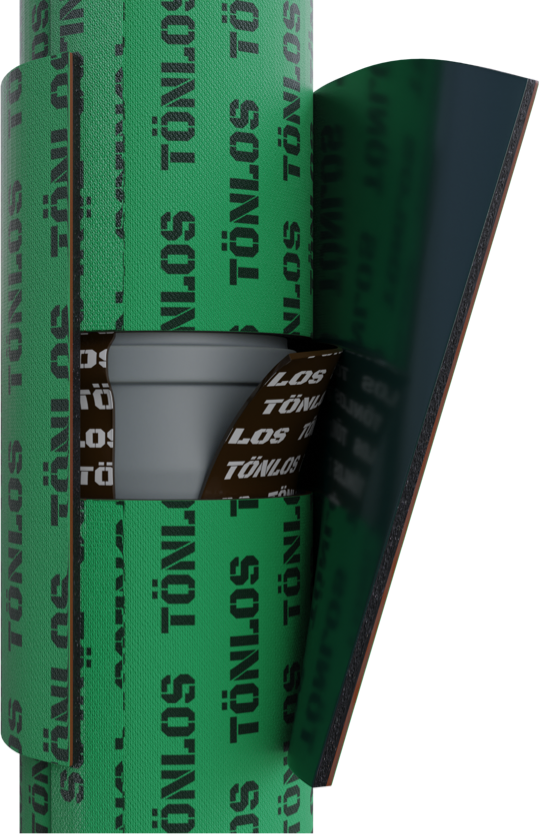

TÖNLOS PIPE PRO – an advanced set with two different materials to maximize the result and isolate the noise as much as possible. 1st layer – 2 mm vibration damping butyl mat, 2nd layer – 9 mm insulation. It reduces noise up to 12 db*.
* – db may very, depending on the test method.
The set is made for ⌀110 mm drain pipe and 3 m in length.
All sheets are cut out and there is no need for additional cutting.

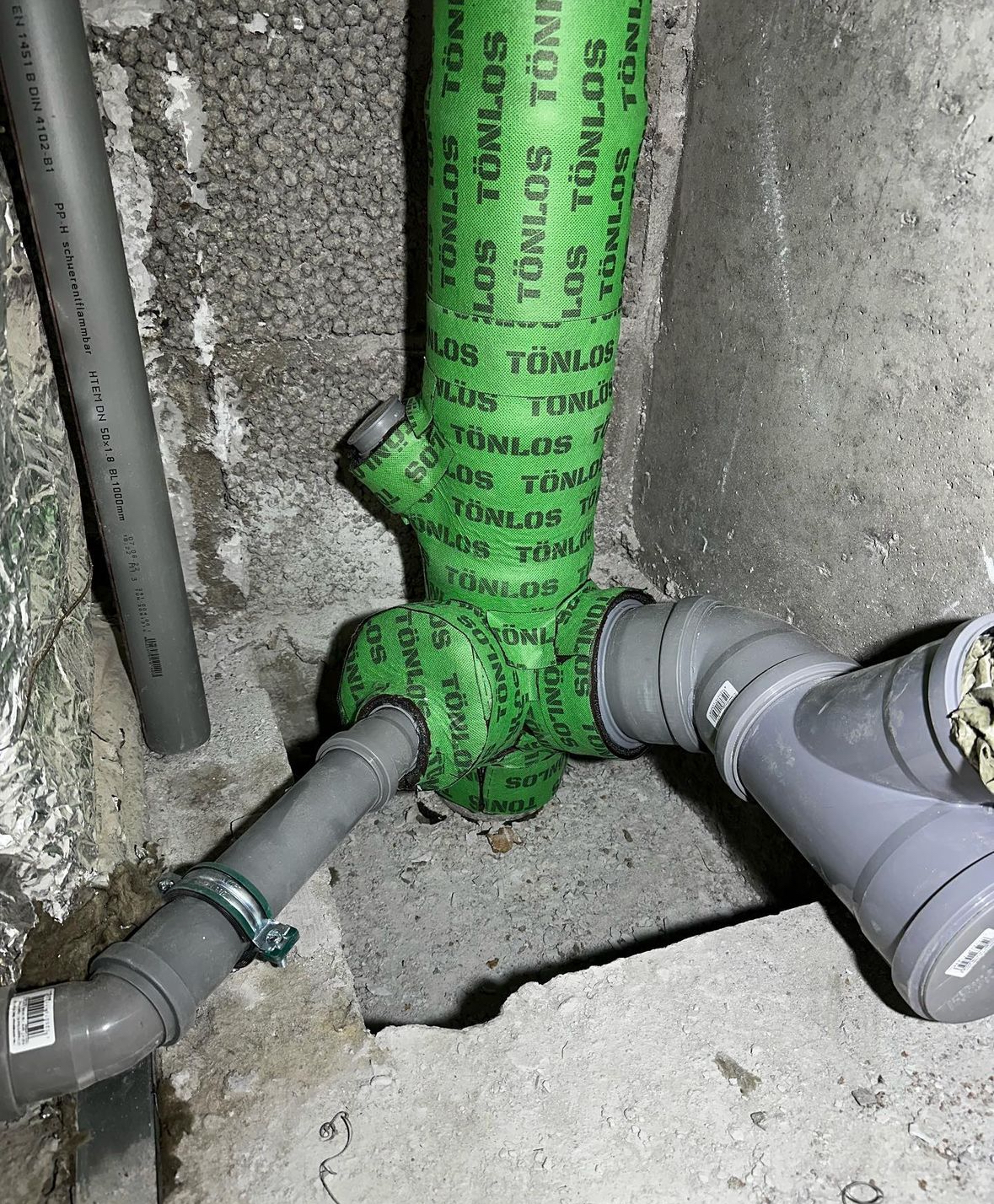

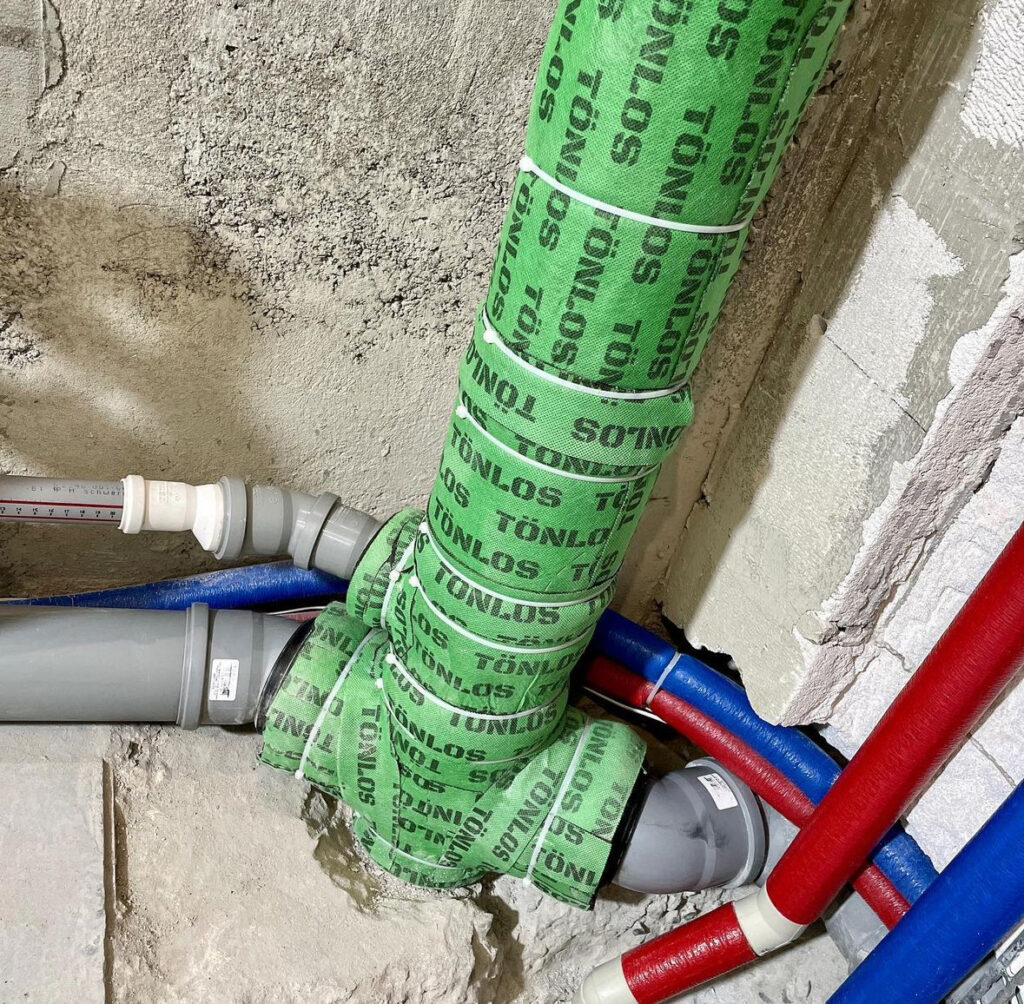

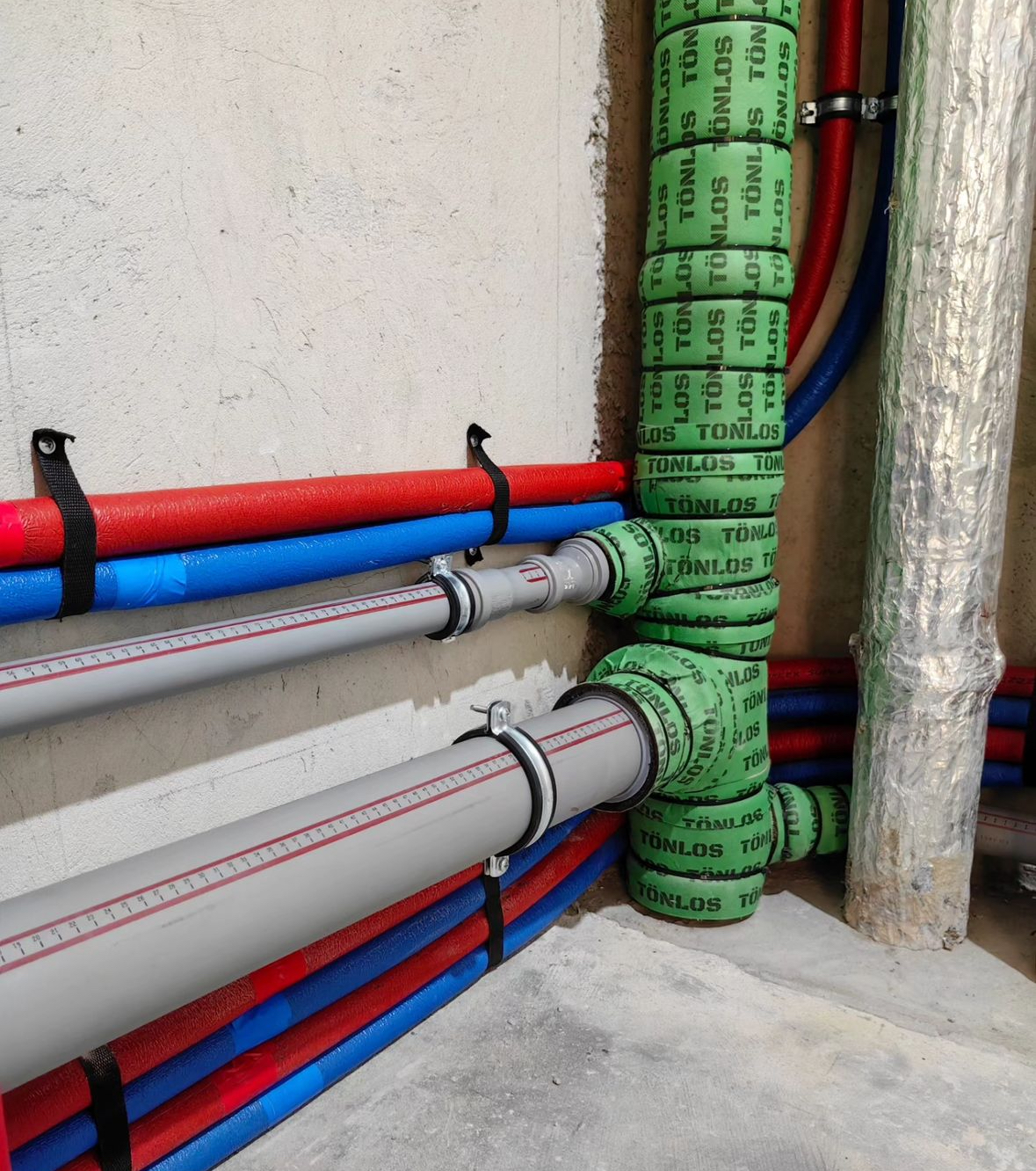

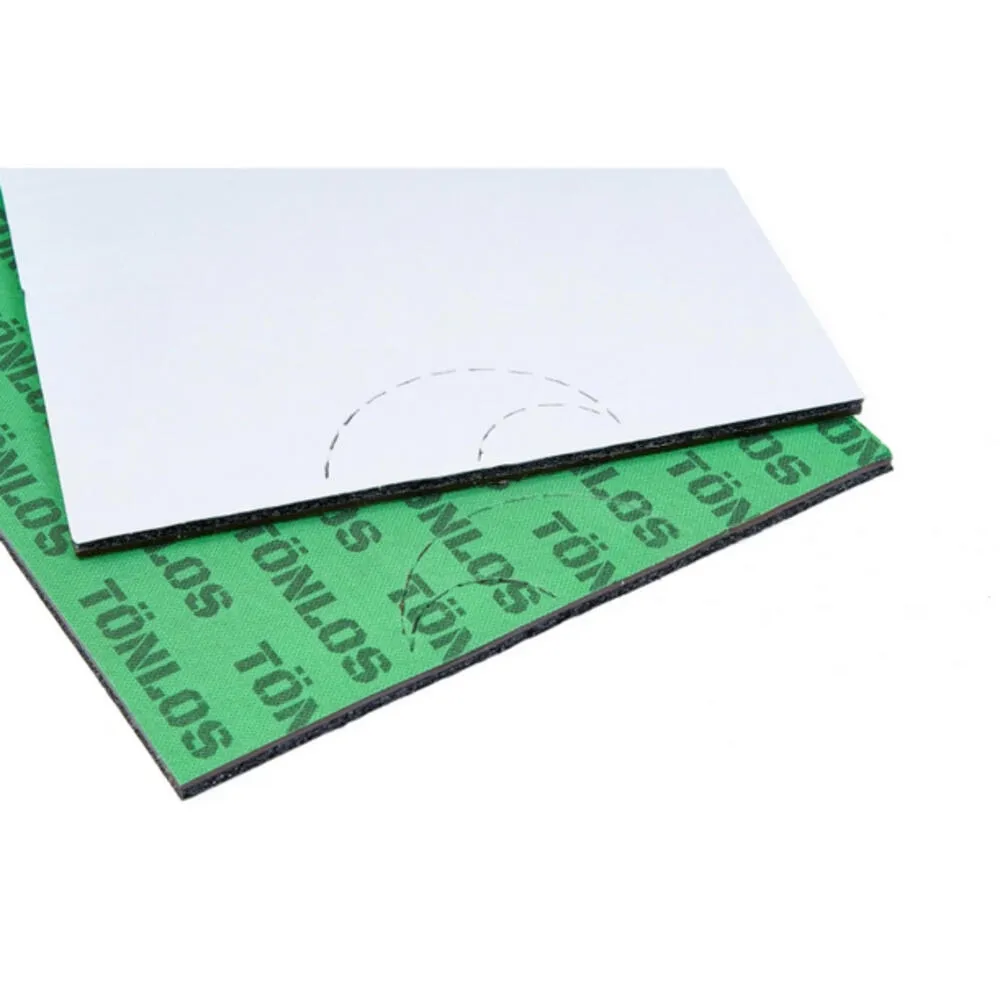

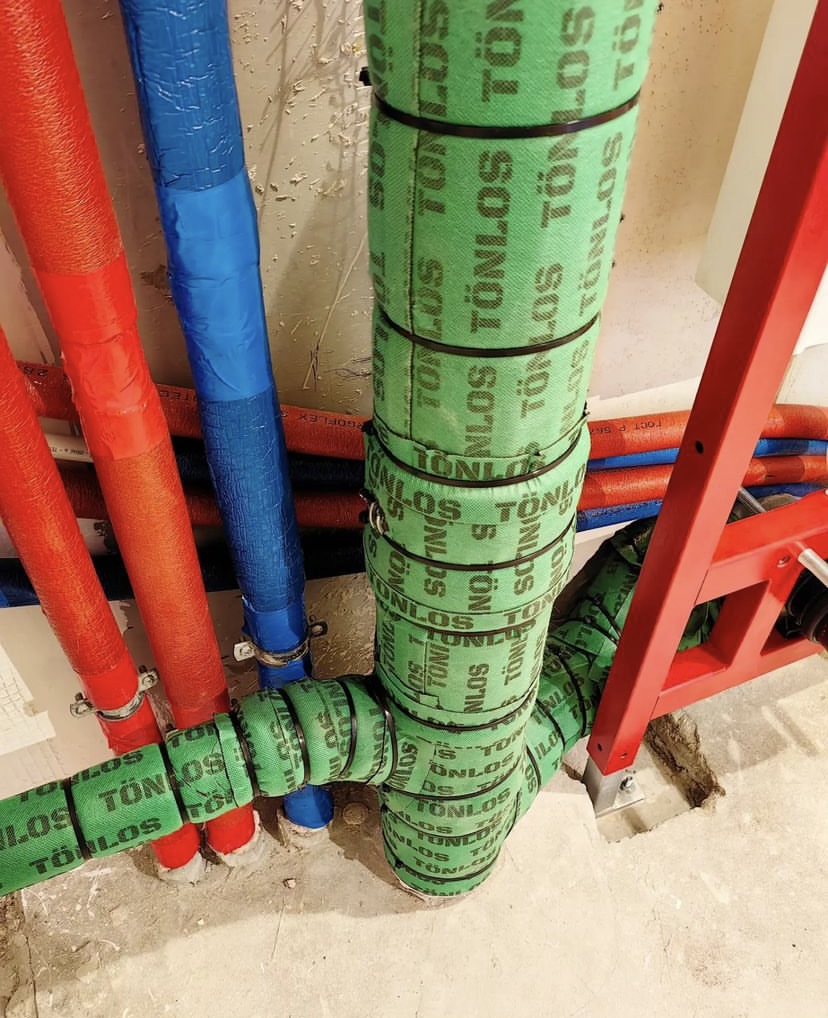

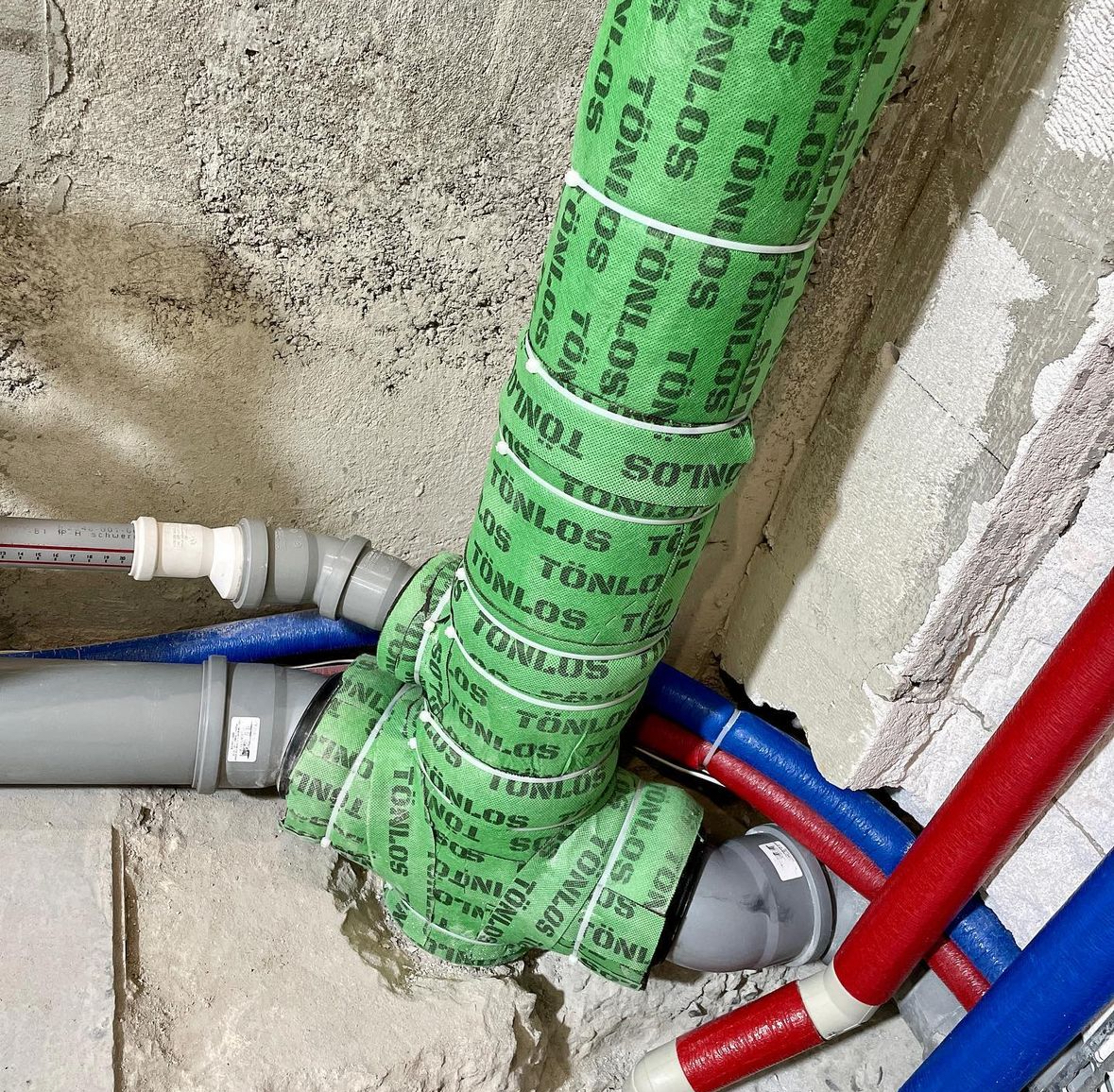

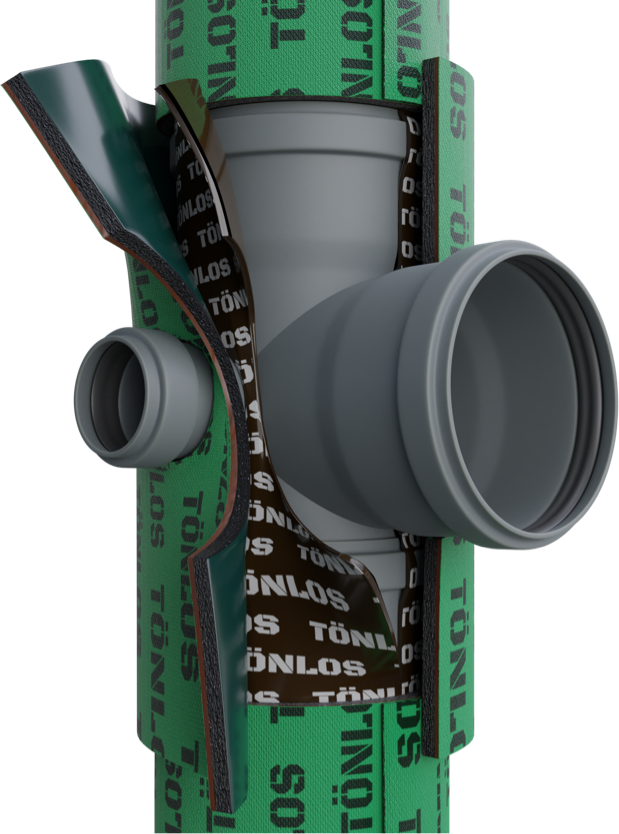

There are cutouts marked on the sheets if you have outlets or pipe tees.
There is a tape is the set, that is used to cover the seams.
TÖNLOS PIPE PRO sound insulation consists of 6 layers

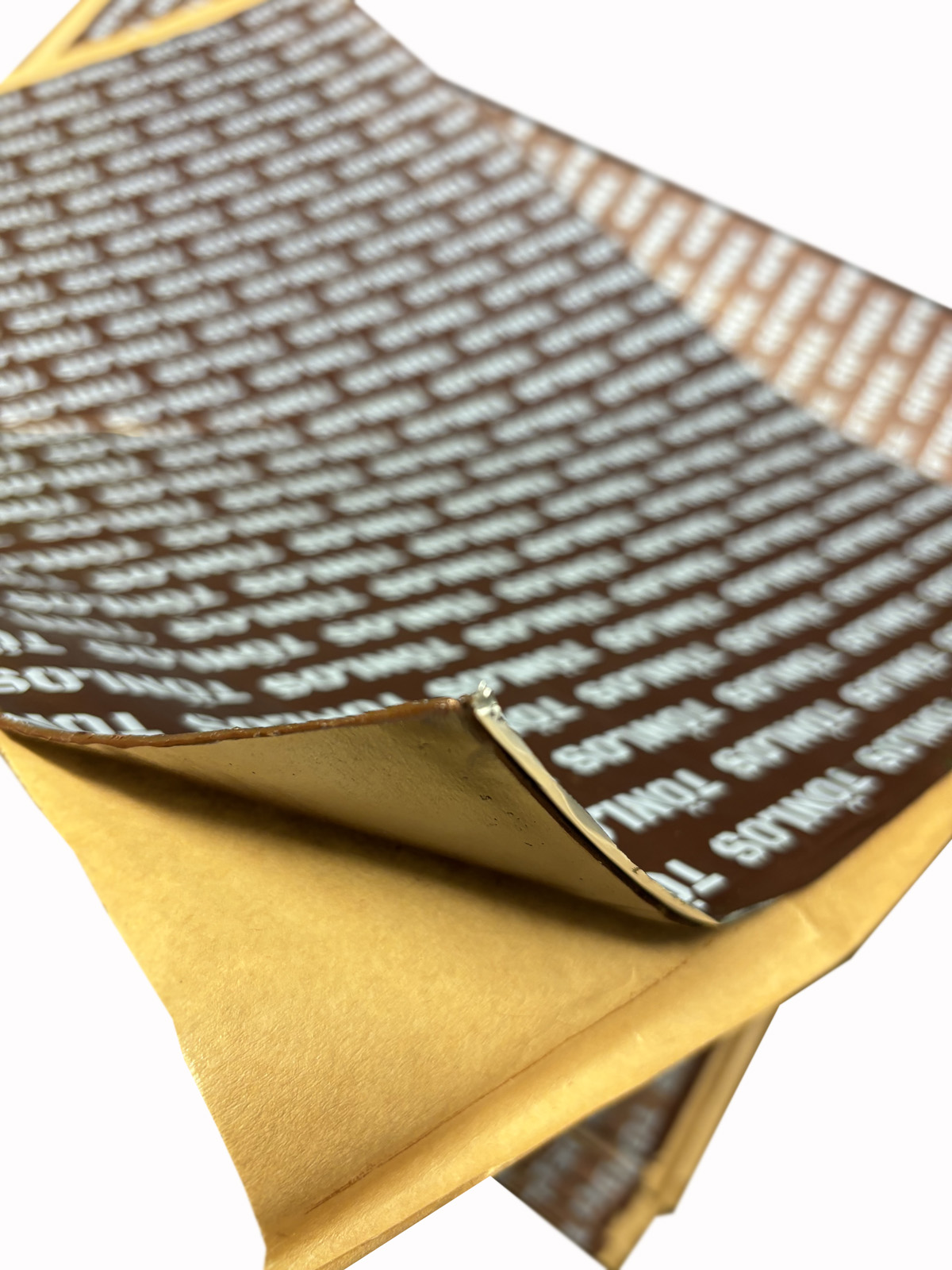

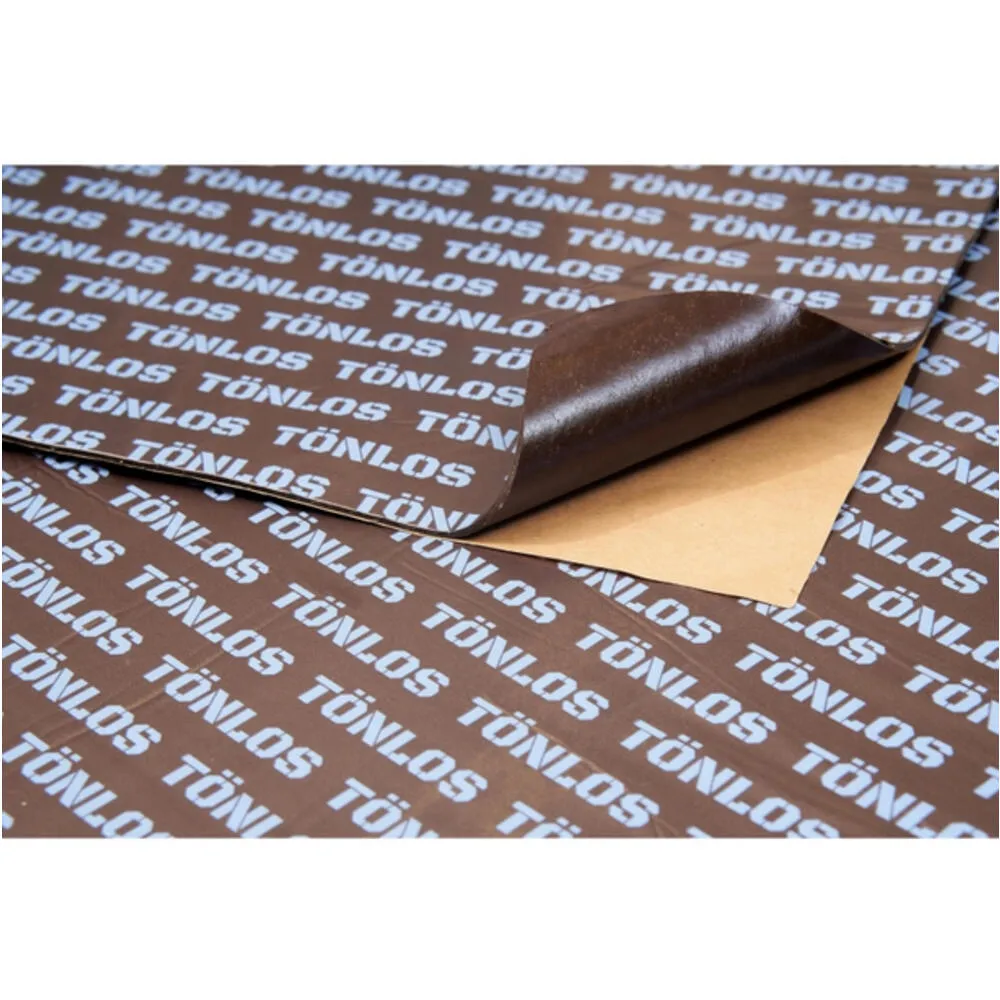

2 mm butyl mat TÖNLOS:
- Foil TÖNLOS
- butyl compound

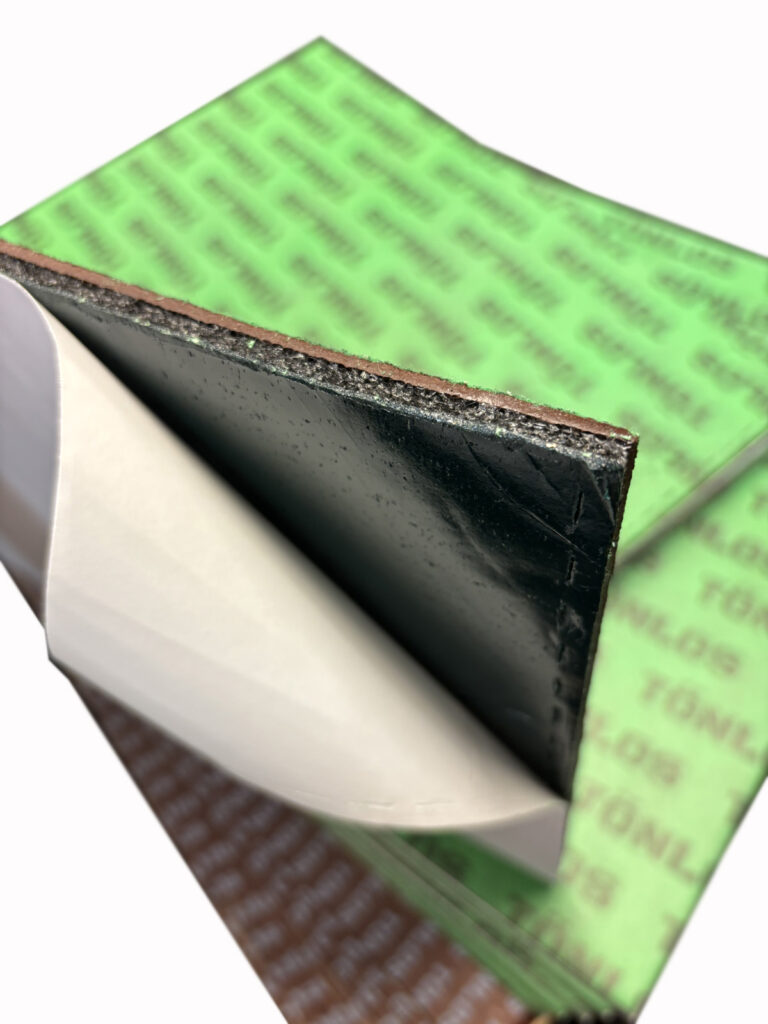

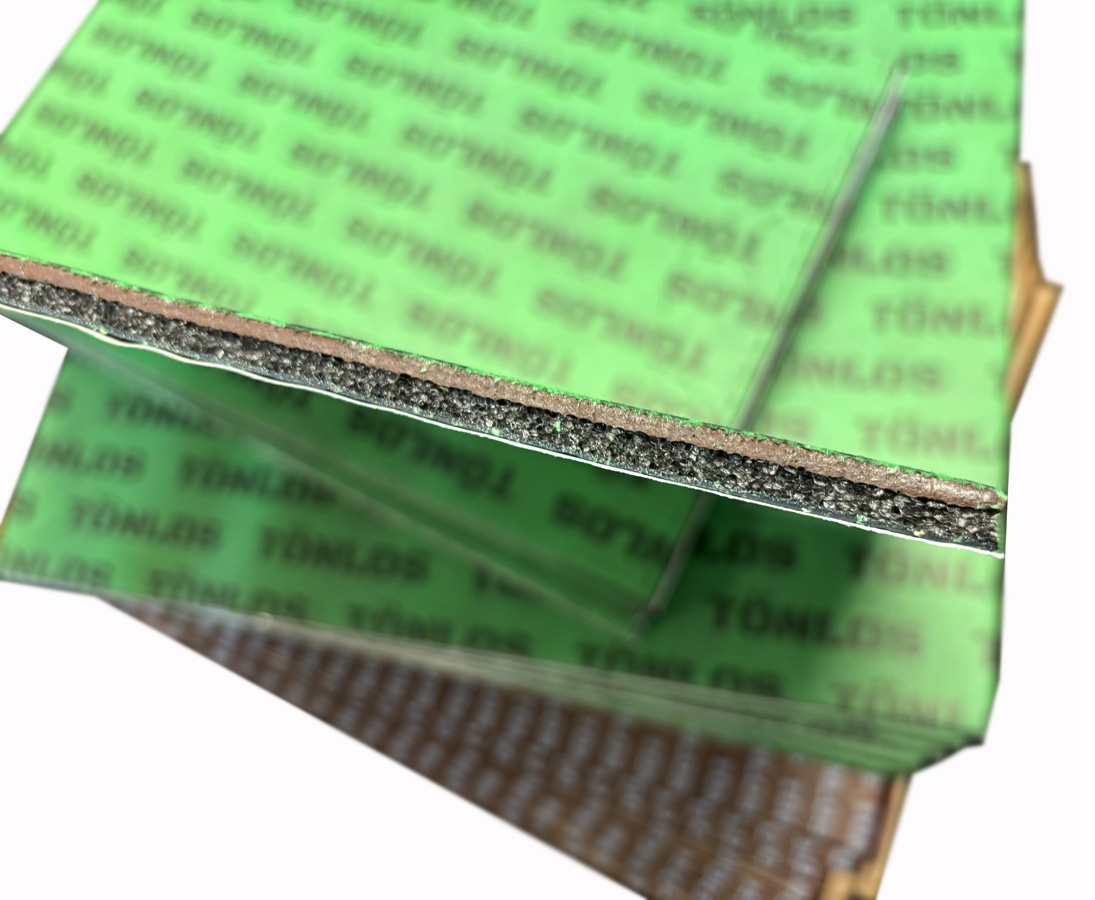

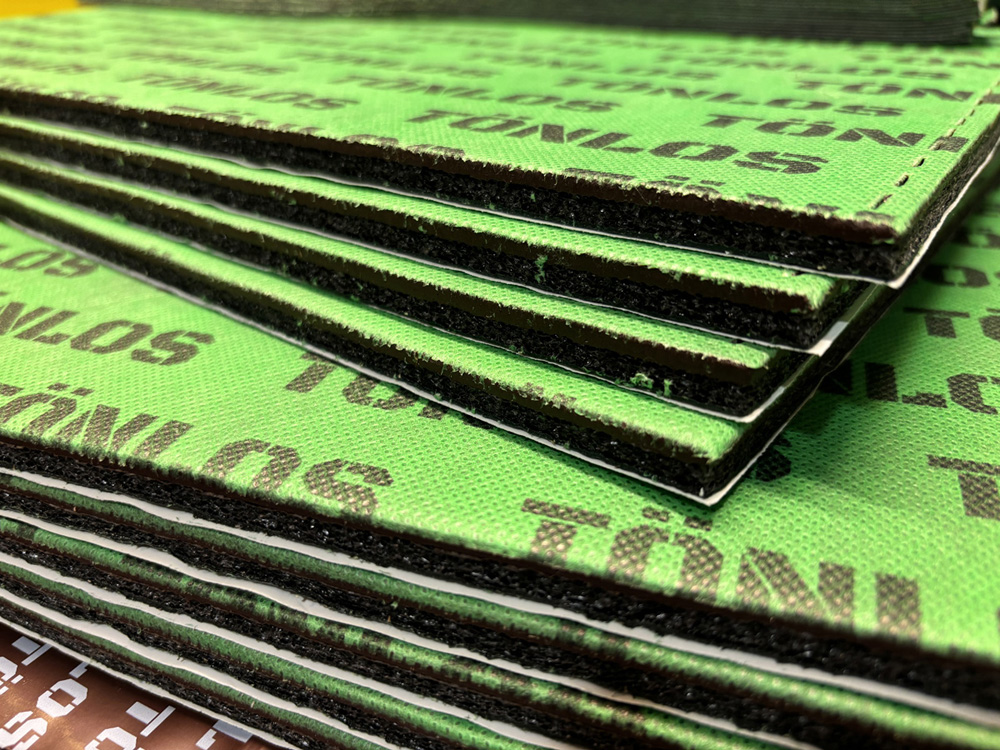

Insulation TÖNLOS
- Spunbond (nonwoven fabric) with TÖNLOS logo – protective top layer.
- Membrane TÖNLOS – heavy 3,5 mm thick top layer, working as sound insulation.
- Polyethylene foam – heat and sound insulation layer.
- sealing glue.

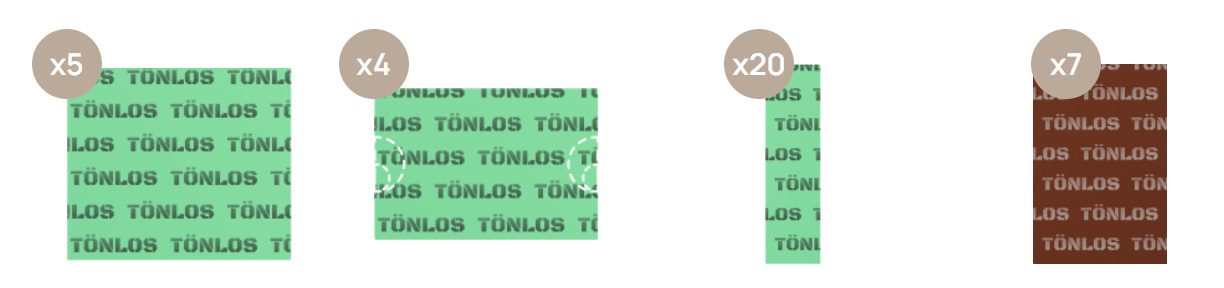

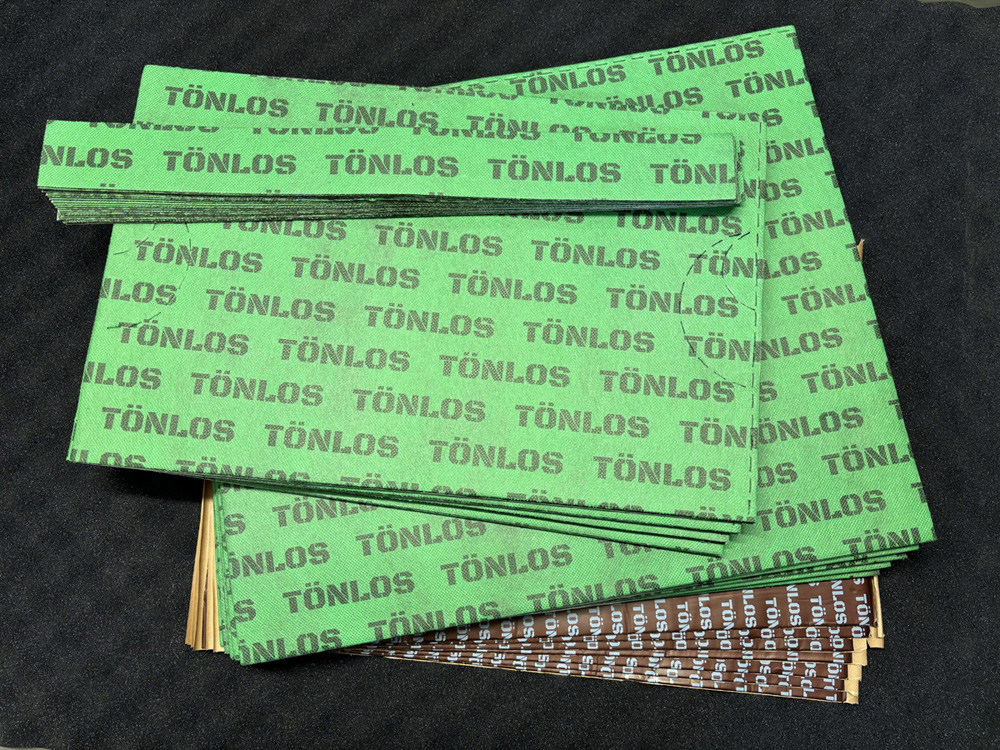

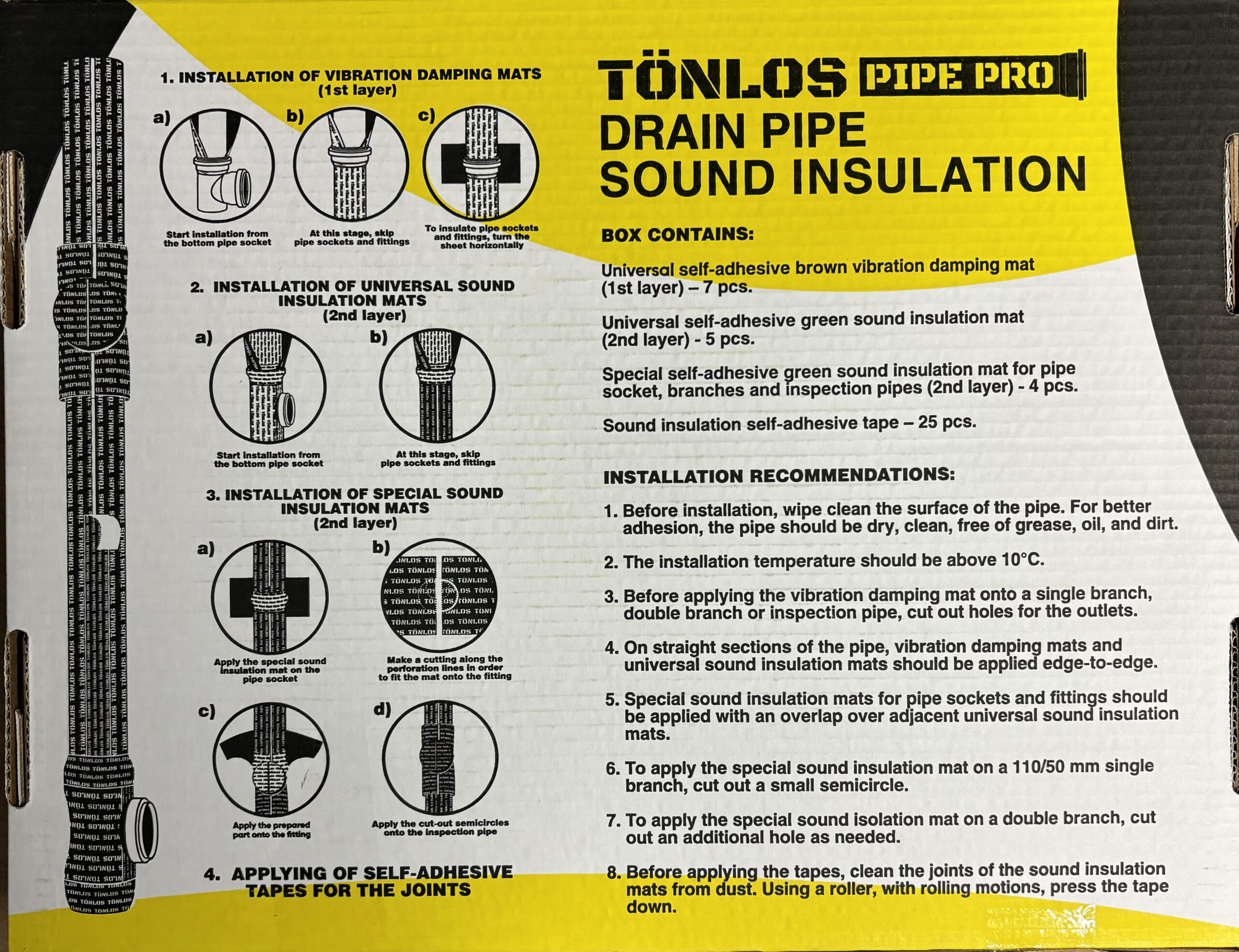

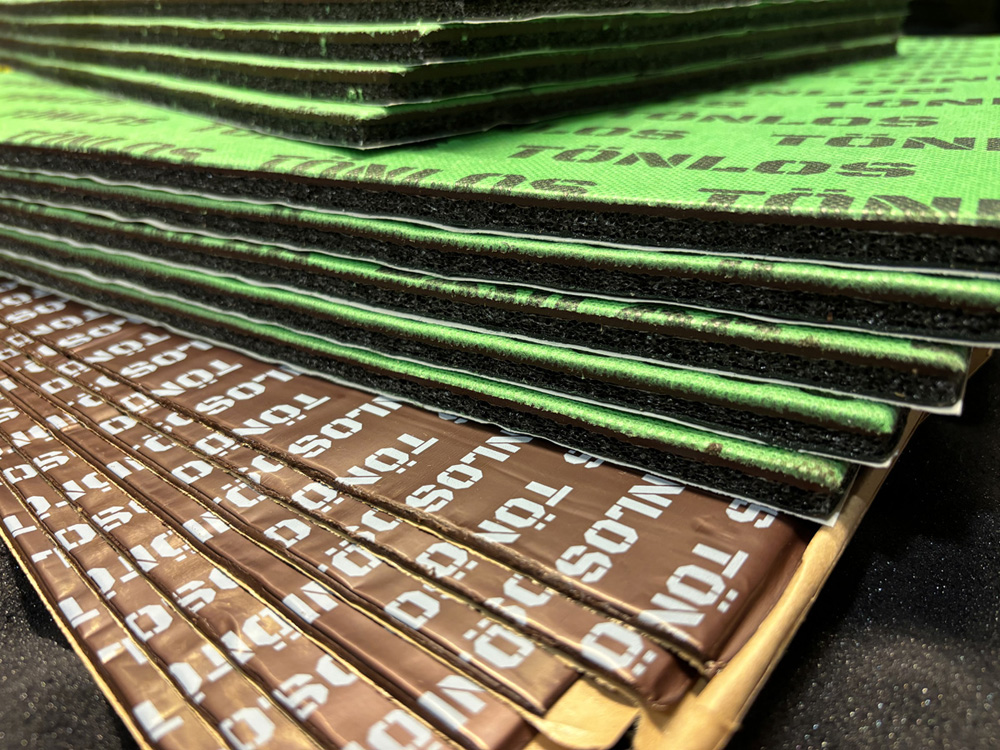

TÖNLOS PIPE PRO set
- 7 pcs of self-adhesive 2 mm vibration damping butyl sheets (365×500 mm)
- 5 pcs of universal self-adhesive 9 mm sheets (411×500 mm)
- 4 pcs of special self-adhesive 9 mm sheets with cut outs for outlets or pipe tees (300×467 mm)
- 20 pcs of self-adhesive tape for the seams (50×480 mm)
Weight of the set: 17,8 kg.

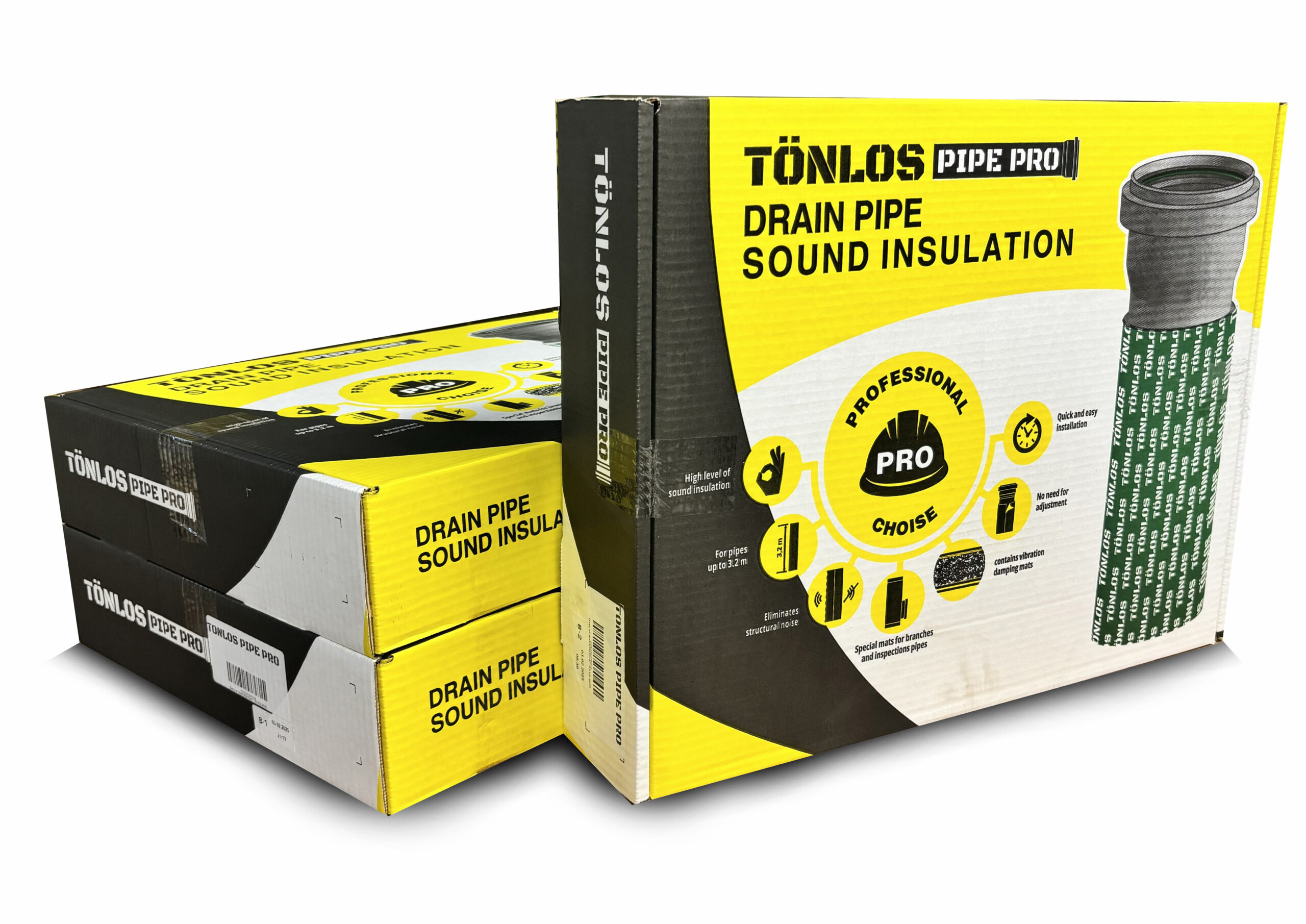

Box size: 550x425x105 mm.
EAN: 4748001025474
